Example: Web Client

All three demos use a single entry point: openQBT(url). It reads the header, detects the mode, and loads data automatically.

npm install qbtiles

import { openQBT } from 'qbtiles';
const qbt = await openQBT('file.qbt');

• Demo 1: Tile Archive Viewer — MVT tiles via MapLibre
• Demo 2: Columnar Grid — 930K population cells from 1.7 MB
• Demo 3: Range Request — per-cell query on 51M cell dataset

Full source code: demo-src/src/pages/

---

1. Tile Archive Viewer

Serve MVT vector tiles from a single .qbt file. PMTiles replacement.

Live demo · Source

import { openQBT } from 'qbtiles';

// Load — fetches header, then index via Range Request
const qbt = await openQBT('korea_tiles.qbt');
// qbt.mode → 'variable', qbt.leafCount → 36,149

// Fetch a single tile
const tile = await qbt.getTile(7, 109, 49);
// → ArrayBuffer (gzip-compressed MVT) or null

// Register as MapLibre protocol — one line
qbt.addProtocol(maplibregl, 'qbtiles');
map.addSource('src', {
  type: 'vector',
  tiles: ['qbtiles:///{z}/{x}/{y}'],
  maxzoom: 14,
});

For deck.gl without MapLibre:

import { TileLayer } from '@deck.gl/geo-layers';

new TileLayer({
  getTileData: ({ index, signal }) => qbt.getTile(index.z, index.x, index.y, signal),
});

---

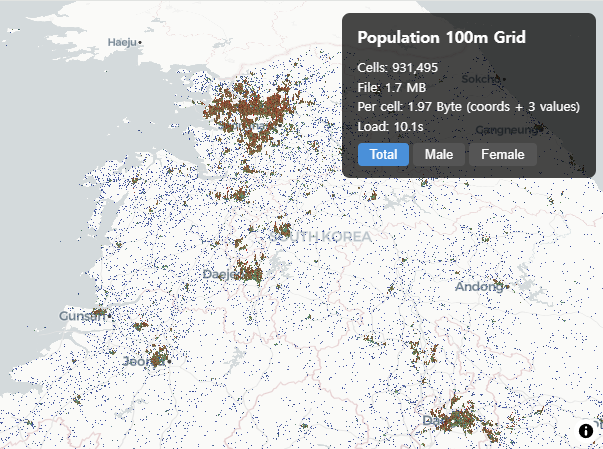

2. Columnar Grid

Load a .qbt.gz file (1.7 MB) containing 930K cells × 3 values. The entire file is downloaded and decompressed at once. CRS conversion (EPSG:5179 → WGS84) is handled internally.

Live demo · Source

import { openQBT } from 'qbtiles';

// Load — downloads, decompresses, parses header + bitmask + values
const qbt = await openQBT('korea_pop_100m.qbt.gz');
// qbt.mode → 'columnar', qbt.leafCount → 931,495

// Access column values directly
const totals = qbt.columns!.get('total')!;   // number[931495]
const males = qbt.columns!.get('male')!;

// Spatial query (in-memory, no network)
const cells = await qbt.query([126, 35, 128, 37]);
// → Array<{ position: [lng, lat], value }>

// CRS conversion (EPSG:5179 → WGS84, built-in)
const [lng, lat] = qbt.toWGS84(950000, 1950000);

Render as deck.gl ColumnLayer:

import { ColumnLayer } from '@deck.gl/layers';

// Walk bitmask tree to get (row, col) → convert to WGS84 positions
const tileSize = qbt.header.extentX / (1 << qbt.header.zoom);
const positions = leafCoords.map(([row, col]) => {
  const cx = qbt.header.originX + col * tileSize + tileSize / 2;
  const cy = qbt.header.originY + row * tileSize + tileSize / 2;
  return qbt.toWGS84(cx, cy);
});

new ColumnLayer({
  data: positions.map((pos, i) => ({ position: pos, value: totals[i] })),
  getPosition: d => d.position,
  getElevation: d => d.value * 3,
  getFillColor: d => colorByValue(d.value),
  diskResolution: 4,
  radius: 50,
  extruded: true,
});

---

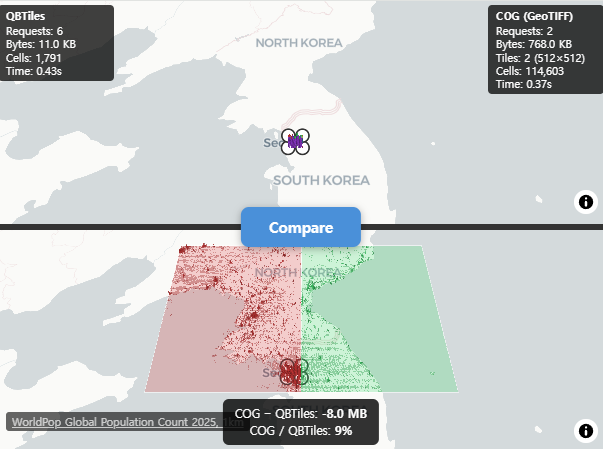

3. Range Request

Query a subset of a 51M-cell global dataset by bounding box. Only the bitmask index (8.7 MB) is pre-downloaded; cell values are fetched on demand via HTTP Range Request.

Live demo · Source

import { openQBT } from 'qbtiles';

// Load — fetches 128B header, then bitmask via Range Request
const qbt = await openQBT('https://cdn.example.com/global_pop.qbt');
// qbt.mode → 'fixed', qbt.leafCount → 51,297,957

// Query by bounding box — fetches only the needed cells
const cells = await qbt.query([126, 35, 128, 37]);
// → Array<{ position: [lng, lat], value }>
// Internally: queryBbox → mergeRanges → fetchRanges (HTTP Range Request)

// Check transfer stats
console.log(qbt.lastStats);
// → { requests: 7, bytes: 23100, cells: 4576, timeMs: 120 }

---

Mapping Library Integration

getTile(z, x, y, signal?) is compatible with all major mapping libraries:

MapLibre GL JS

qbt.addProtocol(maplibregl, 'qbt');
map.addSource('src', { type: 'vector', tiles: ['qbt:///{z}/{x}/{y}'] });

deck.gl TileLayer (standalone)

new TileLayer({
  getTileData: ({ index, signal }) => qbt.getTile(index.z, index.x, index.y, signal),
});

Leaflet GridLayer

createTile(coords, done) {
  qbt.getTile(coords.z, coords.x, coords.y)
    .then(buf => { done(null, renderToCanvas(buf)); });
  return document.createElement('canvas');
}

OpenLayers

new VectorTile({ loader: (z, x, y) => qbt.getTile(z, x, y) });
